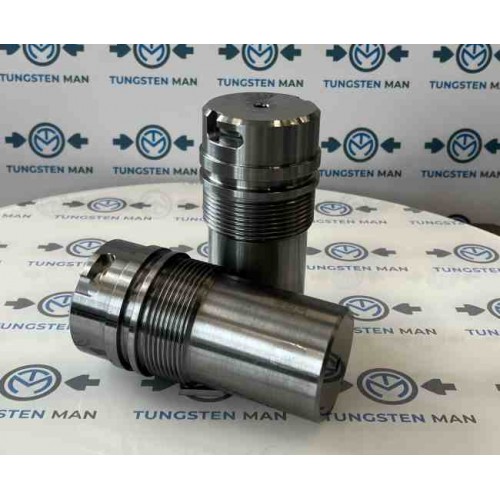

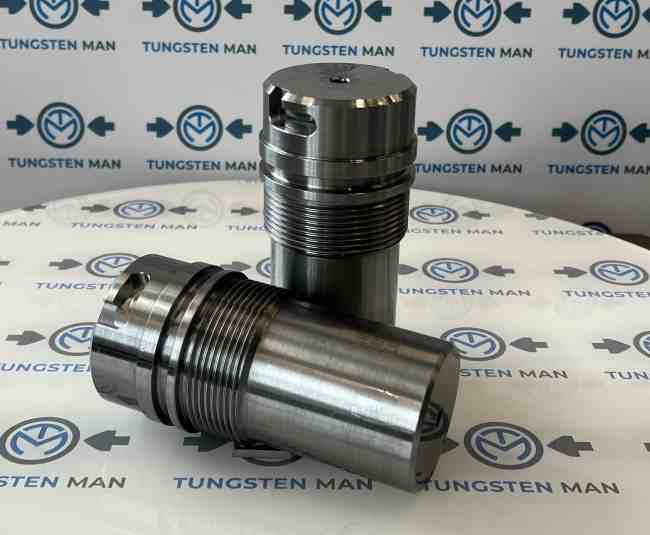

Choke Bean With 20/64" Tungsten Carbide Insert
Exceptional Hardness: Tungsten carbide is extremely hard and has a high resistance to abrasion and wear. This makes it ideal for use in choke beans, which are subjected to high-pressure flows of abrasive fluids or particles. Tungsten carbide choke beans can withstand prolonged wear and damage, ensuring longer service life and reduced downtime for replacements.
Improved Flow Control: Choke beans are used to regulate fluid flow rates in various industries, such as oil and gas drilling. Due to their hardness and wear resistance, tungsten carbide inserts in choke beans provide precise and consistent flow control. They can maintain their shape and integrity even under high-pressure conditions, leading to better control of fluid flow rates.
Corrosion Resistance: Tungsten carbide exhibits excellent corrosion resistance, making it suitable for use in harsh and corrosive environments. This corrosion resistance ensures that tungsten carbide choke beans can withstand exposure to corrosive fluids or gases without significant degradation in performance or functionality.
Extended Service Life: The hardness and wear resistance of tungsten carbide choke beans contribute to their extended service life. By using tungsten carbide inserts, choke beans can withstand abrasive forces, pressures, and corrosive fluids for an extended duration, ultimately reducing the need for frequent replacements and minimizing associated costs.
Versatility: Tungsten carbide choke beans can be manufactured to specific sizes and designs to meet various application requirements. They can be customized to fit different choke systems, ensuring compatibility and optimal performance in various industries.
TUNGSTEN MAN makes choke beans, the advantages of using our tungsten carbide choke beans include improved durability, precise flow control, corrosion resistance, extended service life, and versatility, making them a preferred choice in demanding industrial applications.
Size | OD(mm) | ID(mm) | L(mm) |
2/64 | 16.51 | 0.787 | 149.352 |
4/64 | 1.575 | 149.352 | |
6/64 | 2.362 | 149.352 | |
8/64 | 3.175 | 149.352 | |
10/64 | 16.51 | 3.962 | 149.352 |
12/64 | 4.75 | 149.352 | |
14/64 | 5.537 | 149.352 | |
16/64 | 6.35 | 149.352 | |
18/64 | 24.003 | 7.137 | 149.352 |
20/64 | 7.925 | 149.352 | |
22/64 | 8.712 | 149.352 | |
24/64 | 9.525 | 149.352 | |
26/64 | 24.003 | 10.312 | 149.352 |
28/64 | 11.1 | 149.352 | |
30/64 | 11.887 | 149.352 | |
32/64 | 12.7 | 149.352 | |
34/64 | 29.998 | 13.487 | 149.352 |
36/64 | 14.275 | 149.352 | |
38/64 | 15.062 | 149.352 | |
40/64 | 15.875 | 149.352 | |
42/64 | 29.998 | 16.662 | 149.352 |
44/64 | 17.45 | 149.352 | |
46/64 | 18.237 | 149.352 | |
48/64 | 19.05 | 149.352 | |
50/64 | 34.011 | 19.837 | 149.352 |
52/64 | 20.625 | 149.352 | |
54/64 | 21.412 | 149.352 | |
56/64 | 22.225 | 149.352 | |
58/64 | 35.992 | 23.012 | 149.352 |
60/64 | 23.8 | 149.352 | |
62/64 | 24.587 | 149.352 | |
64/64 | 25.4 | 149.352 | |
66/64 | 41.275 | 26.187 | 149.352 |
68/64 | 26.975 | 149.352 | |
70/64 | 27.762 | 149.352 | |
72/64 | 28.575 | 149.352 | |
74/64 | 41.275 | 29.362 | 149.352 |
76/64 | 30.15 | 149.352 | |
78/64 | 30.94 | 149.352 | |
80/64 | 45.009 | 31.75 | 149.352 |
82/64 | 32.537 | 149.352 | |
84/64 | 33.325 | 149.352 | |
86/64 | 34.112 | 149.352 | |
88/64 | 34.925 | 149.352 | |
90/64 | 48.489 | 35.712 | 149.352 |
92/64 | 36.5 | 149.352 | |
94/64 | 37.287 | 149.352 | |
96/64 | 38.1 | 149.352 | |
98/64 | 51.994 | 38.887 | 149.352 |
100/64 | 39.675 | 149.352 | |
102/64 | 39.7 | 149.352 | |
104/64 | 41.275 | 149.352 | |
106/64 | 54.991 | 42.062 | 149.352 |
108/64 | 42.85 | 149.352 | |
110/64 | 43.637 | 149.352 | |
112/64 | 44.45 | 149.352 | |
114/64 | 57.988 | 45.237 | 149.352 |
116/64 | 46.025 | 149.352 | |
118/64 | 46.812 | 149.352 | |
120/64 | 47.625 | 149.352 | |
124/64 | 61.0108 | 49.2 | 149.352 |
126/64 | 49.987 | 149.352 | |
128/64 | 50.8 | 149.352 | |
136/64 | 73.9902 | 53.975 | 149.352 |
144/64 | 57.15 | 149.352 | |
152/64 | 60.325 | 149.352 | |
160/64 | 63.5 | 149.352 | |
168/64 | 86.487 | 66.675 | 149.352 |
176/64 | 69.85 | 149.352 | |
184/64 | 73.025 | 149.352 | |
192/64 | 76.2 | 149.352 |
Tungsten Carbide Choke Beans For Choke Valve
- Brand: Tungsten Man
- Product Code: TCCB0011
- Availability: In Stock
